1、Solid State Relay

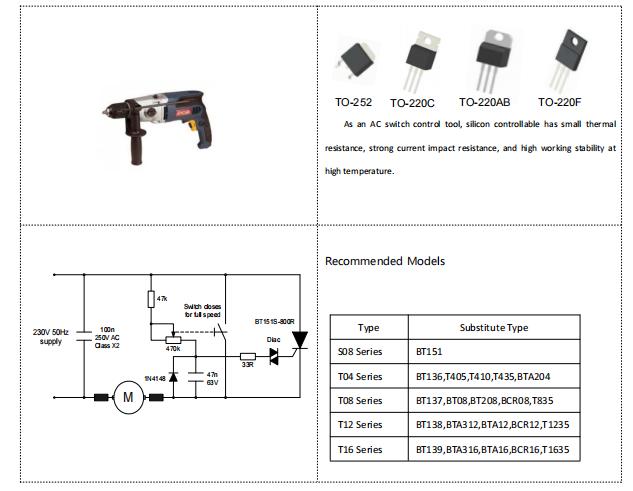

2、Electric Tools

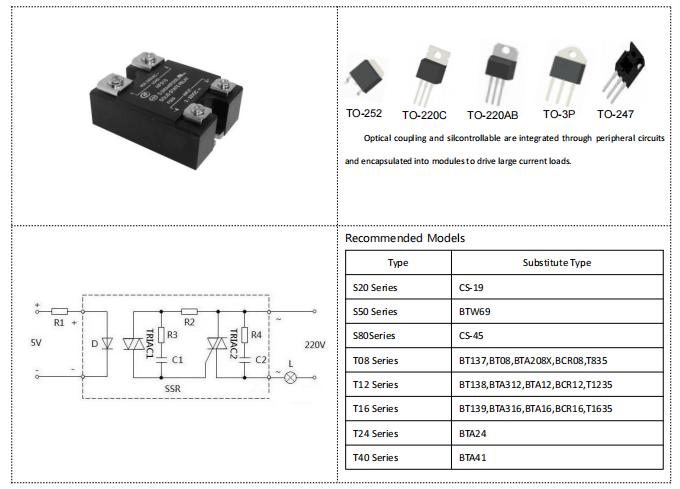

Silicon Controlled Rectifiers (SCRs) act as the switching element in many AC Solid State Relays (SSRs), enabling robust, contactless, and fast high-power switching. Unlike standard SSRs that act as simple ON/OFF binary switches, SCR-based power controllers allow for proportional power modulation (phase-angle control) in demanding industrial applications.Key Aspects of SCRs in SSRs:Functionality: SCRs operate as a type of thyristor, handling high-power AC loads, with dual-SCR configurations commonly used for AC switching.Operating Principle: Modern SCR-based SSRs allow for, or often use zero-crossover switching to turn on at zero load current, minimizing Electromagnetic Interference (EMI) and preventing high voltage spikes.

Advantages:

Longevity: No moving parts mean higher reliability compared to electromechanical relays.

High Power Capacity: Capable of handling high current and voltage in industrial applications.

Precision: SCR controllers offer precise power regulation compared to simple ON/OFF SSR-based power controllers.
