Introduction to Inverter Systems

An Inverter is the core component of UPS (Uninterruptible Power Systems), renewable energy systems, and industrial power supplies. Its main role is to convert DC power into AC power with stable voltage and frequency, ensuring uninterrupted operation of computers, servers, communication systems, and precision equipment.

When the mains supply is normal, the UPS inverter stabilizes the AC input and charges the internal battery. During a power outage, it instantly switches to DC-to-AC conversion using battery power, preventing data loss and equipment damage.

Core Functions of Inverters

DC-to-AC Conversion: Supplies stable 220V/380V AC output from battery power during outages.
Voltage Stabilization: Regulates input fluctuations, ensuring stable power quality.
Energy Efficiency: Optimized semiconductor devices reduce losses and improve overall conversion efficiency.
Protection: Prevents damage from overvoltage, undervoltage, and sudden outages.

Advanced Semiconductor Technology

Modern inverters rely on high-performance power semiconductor devices such as:

SiC MOSFETs & SiC Diodes: Provide fast switching, high thermal stability, and lower conduction loss.

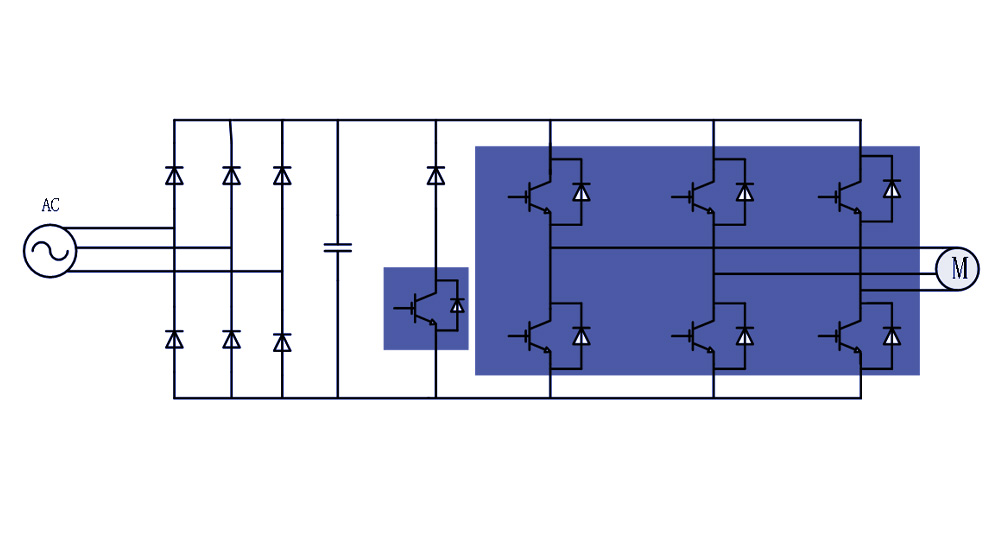

IGBT Modules: Support high-power conversion with lower switching losses.
Trench FS IGBT: The latest generation reduces saturation voltage drop and turn-off loss, minimizing power consumption.
Power Modules: Compact integration for reliable high-voltage and high-current handling.

Application Scenarios

UPS Systems: Provide backup power for IT equipment, medical devices, and industrial control systems.
Renewable Energy: Solar and wind inverters convert clean energy into grid-compatible power.
Industrial Automation: Drives and motor control applications requiring stable and efficient power conversion.
Home & Commercial Use: Power conditioning for appliances, energy storage, and smart grid integration.

Role of SiC & IGBT Devices

Baoquan Zhijie’s SiC modules, trench FS IGBTs, and high-efficiency power semiconductors enhance inverter performance by reducing switching losses, lowering heat generation, and extending system lifespan. These devices deliver the reliability, efficiency, and compact design demanded by modern UPS and renewable energy systems.

Why Baoquan Zhijie

Baoquan Zhijie provides SiC devices, IGBT modules, and high-efficiency inverter solutions tailored for UPS, renewable energy, and industrial applications. Our technologies empower manufacturers to build reliable, energy-saving, and cost-effective power systems that meet the demands of the future.
